Create new Room or Room Template based on a Revit Room

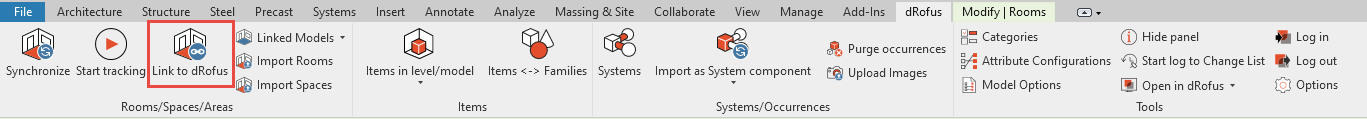

Open “Link to dRofus” in the ribbon menu
![](../../../__attachments/2570354689/image2022-1-27_13-49-19.png?inst-v=150bf69c-18b7-450b-98d4-79bdd200ae9a)

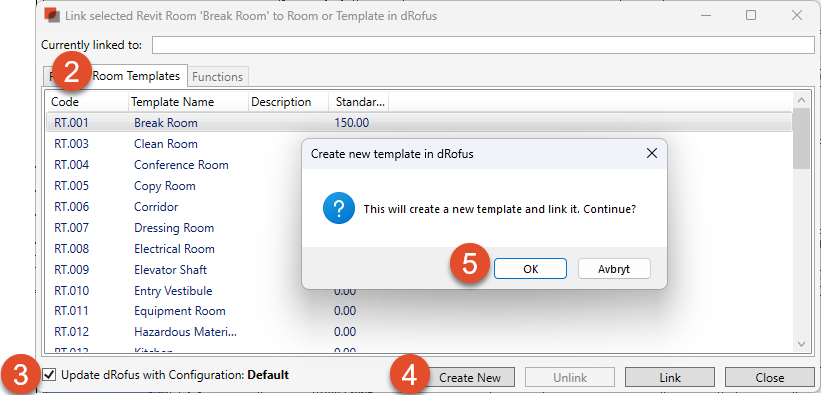

Create new Room or Room Template
![](../../../__attachments/2570354689/image-20230321-102809.png?inst-v=150bf69c-18b7-450b-98d4-79bdd200ae9a)
1: Select a Revit Room in the model
2: Select “Room” or “Room Templates” tab
3: Validate that the correct Attribute configuration is selected
4: Select “Create New”
5: Select “Ok”
