dRofus Data model
Database and Project
A Database can contain one or more Projects.
Rooms
Room Instances. Not Necessarily surrounded by walls (can be a functional area within a larger space).
Room Structure
Room Functions is a hierarchical structure with a collection of rooms. Usually represent the end users' future organization and performance of the building. The rooms will get a room function number that indicates the location within the room function structure.
Room Groups are an additional way of organizing rooms into groups.
![](../../../__attachments/2596765713/image-20230503-131325.png?inst-v=0afdfd47-3bc6-4c62-adaf-adf72ef5899e)

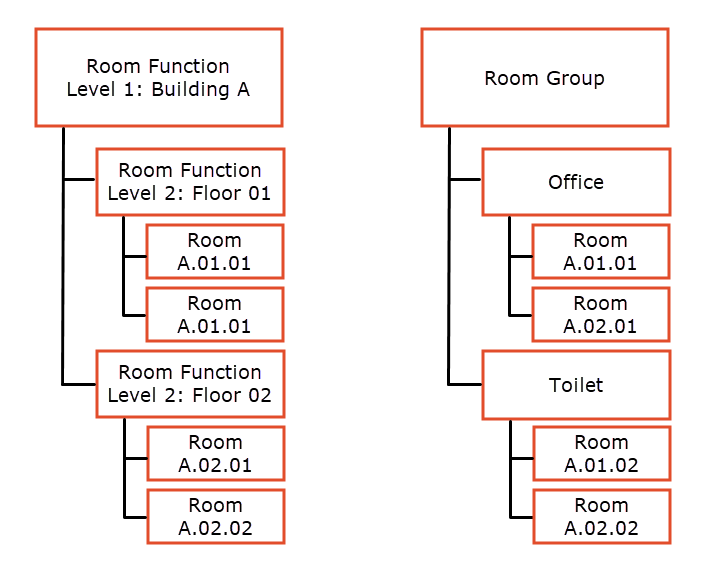

Example of Room Functions and Room Groups
Item list
Item list is a list of occurrences of Items for each Room or Room Template
![](../../../__attachments/2596765713/image-20230504-092232.png?inst-v=0afdfd47-3bc6-4c62-adaf-adf72ef5899e)

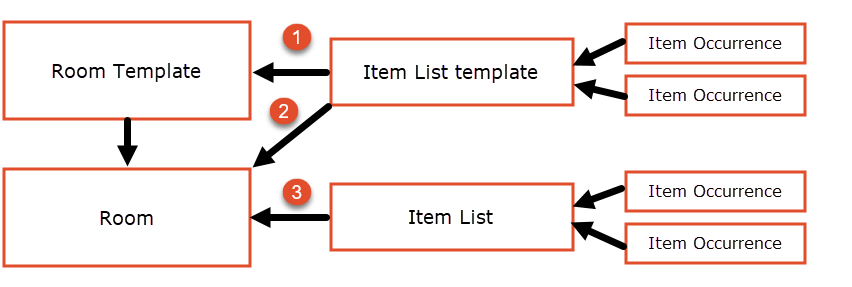

Item list created from an Item list to a Room Template
Item list created from an Item List Template
Item list created uniquely for the Room.
Templates for rooms
Room Templates are virtual spaces that transmit data and lists of items to one or more connected room instances. Templates can be used to create rooms, and any changes made to the template will be reflected in the data and item list of the corresponding rooms. Additionally, rooms can be created as "derived" from a template, meaning that the data and item list will be copied but not updated when changes are made to the template.

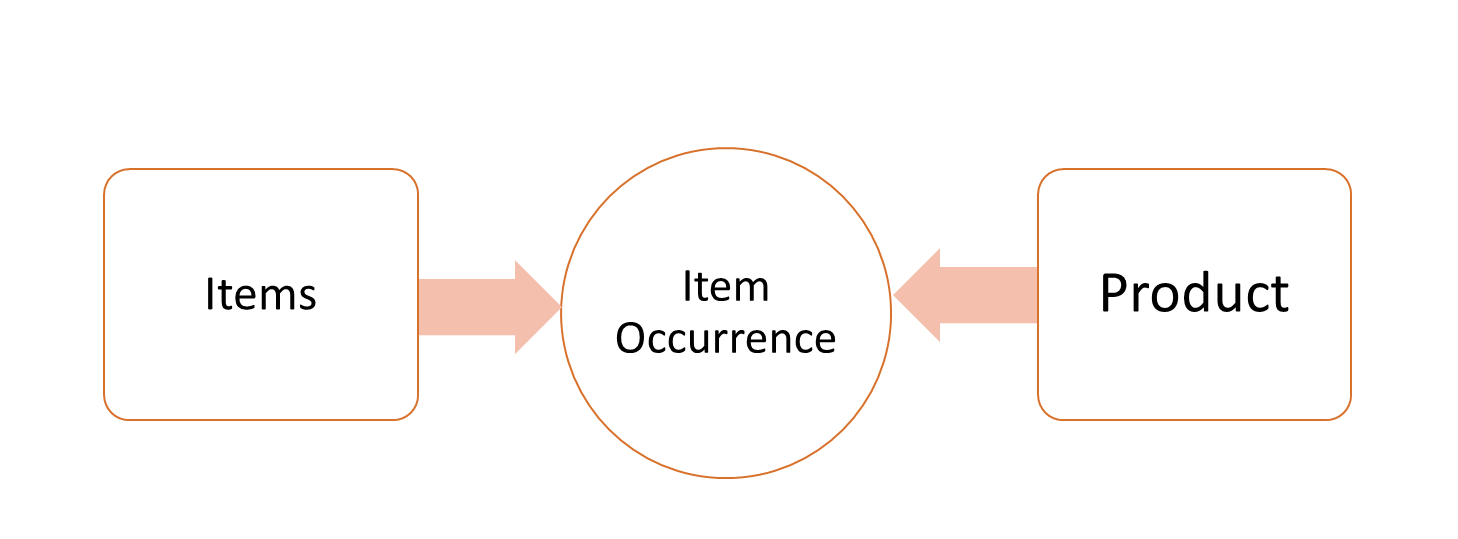

Items, Item Occurrences, and Product
![](../../../__attachments/2596765713/image-20230503-133639.png?inst-v=0afdfd47-3bc6-4c62-adaf-adf72ef5899e)
Item Groups
![](../../../__attachments/2596765713/image-20230613-071545.png?inst-v=0afdfd47-3bc6-4c62-adaf-adf72ef5899e)

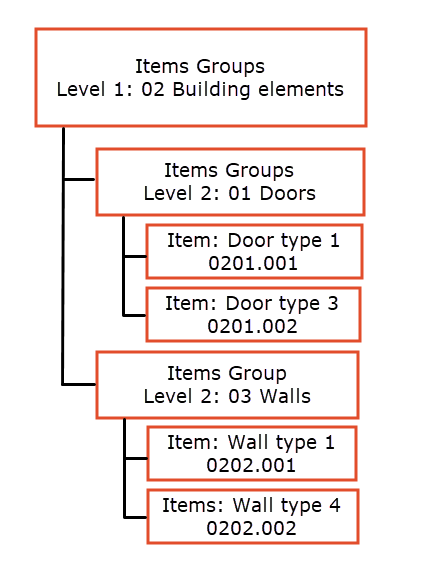

Item Groups is a hierarchical structure with a collection of Items. Groups are usually organized intuitively based on Item type /categories. Items will get an Item number indicating where in the Item group structure it is located.
Item
Item is a generic type object. Not physical. Represent all building elements and equipment.
Parent and Child Item
Parent Item is an Item That has child Items.
Child Item is an Item with a relation to a parent Item. The child Item inherits data from the parent.
![](../../../__attachments/2596765713/image-20230504-094549.png?inst-v=0afdfd47-3bc6-4c62-adaf-adf72ef5899e)

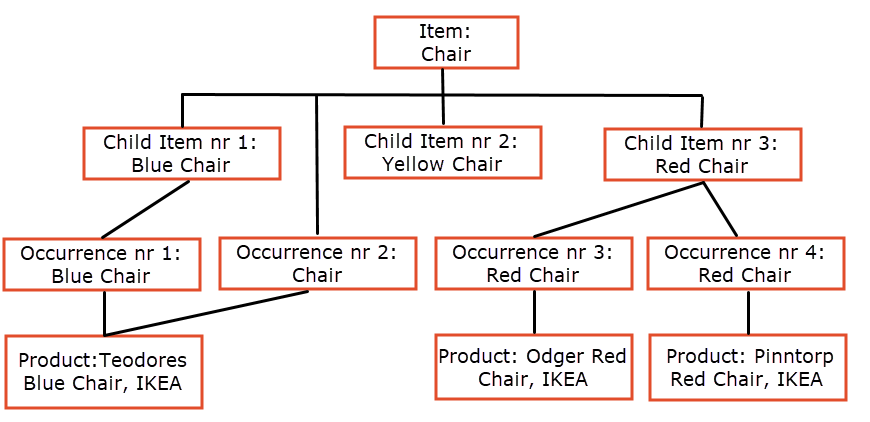

Example: Chair
Sub Item
Sub Item is an Item that is nested into another main Item. An Item can have several Sub Items that form a union/assembly/bundle. If the main item is placed in a room or system, the occurrence of the sub item will automatically be created.
Occurrence
When an Item is placed in the project, it is called the Occurrence of an Item. It can be connected to a room or a system or added to the project as an Occurrence. If the occurrence is a member of a system, it’s called a “component.” If it owns a system, it is called a “System Component.”
Product
The actual product that the project has selected to buy for each planned Item or Occurrence. The product fulfills the Requirements for the planned Items and Occurrences.
Company
Register of manufacturers or suppliers of a product
Systems
A collection of occurrences in technical systems, for example, Electrical circuits, exhaust air, return air, or logical systems, for example, Walls or Doors.
Classification
Groups of Rooms, Items, or Occurrences in a hierarchical structure. It can be used for Asset numbering.
Documents
Any files that are uploaded to dRofus. Can be associated with Rooms, Room Templates, Items, Occurrences, products, and systems - as well as project and department level.
