Edit Room Measurements

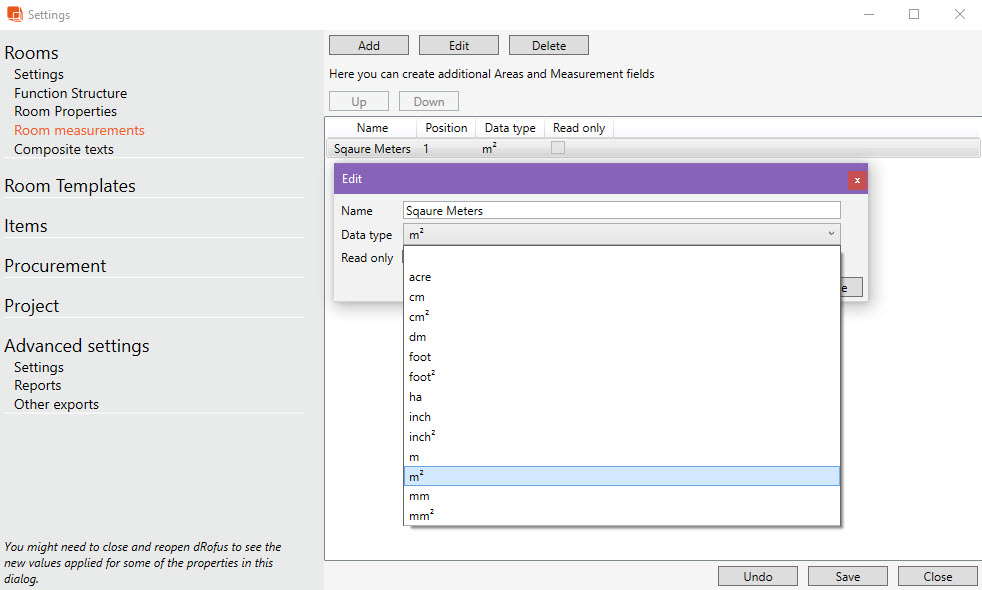

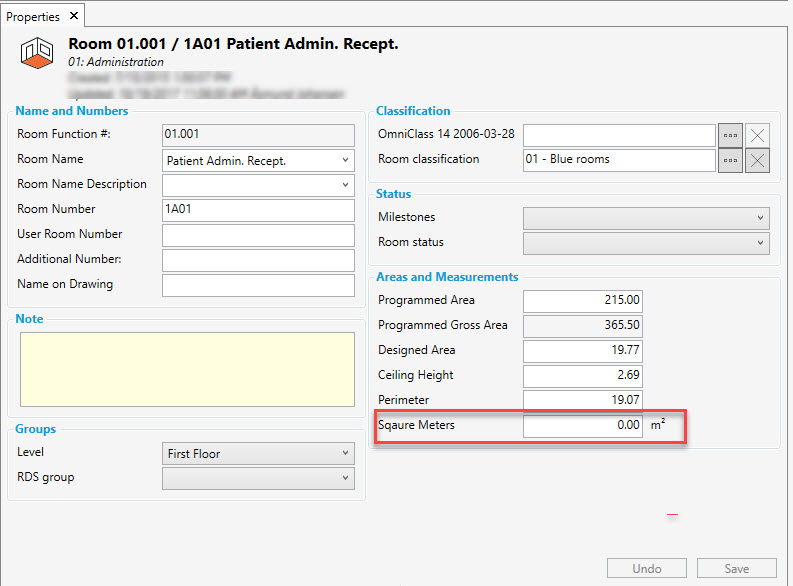

Enables the creation extra measurements for your room. They will be displayed in the "Areas and measurements" part of the Room Properties Panel. When adding a room measurement, a data type can be added as a unit of measurement to be associated with the Room Measurement. A user can decide to lock those areas by checking the 'Read Only' check box. Ideal to freeze areas to each project milestone for instance;

The custom Room measurements be used in a column view  in the Room List or the Areas panel. Either select the column picker icon

Note

Areas and Measurement fields can have a value up to 999,999.99

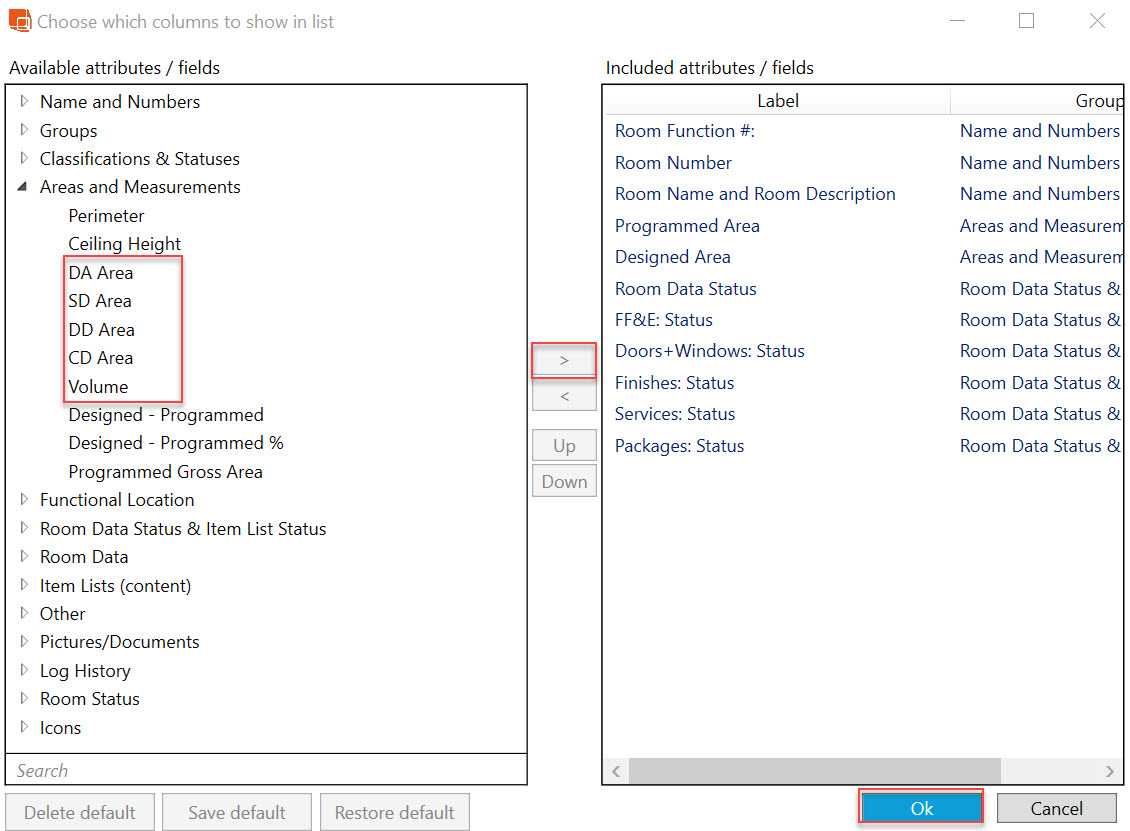

or right click and select "Add/ Remove Columns". Then choose the custom Room measurements under "Areas and measurements"
