Occurrence match

Items in the room can be checked using the Occurrence match panel available on the right side menu.

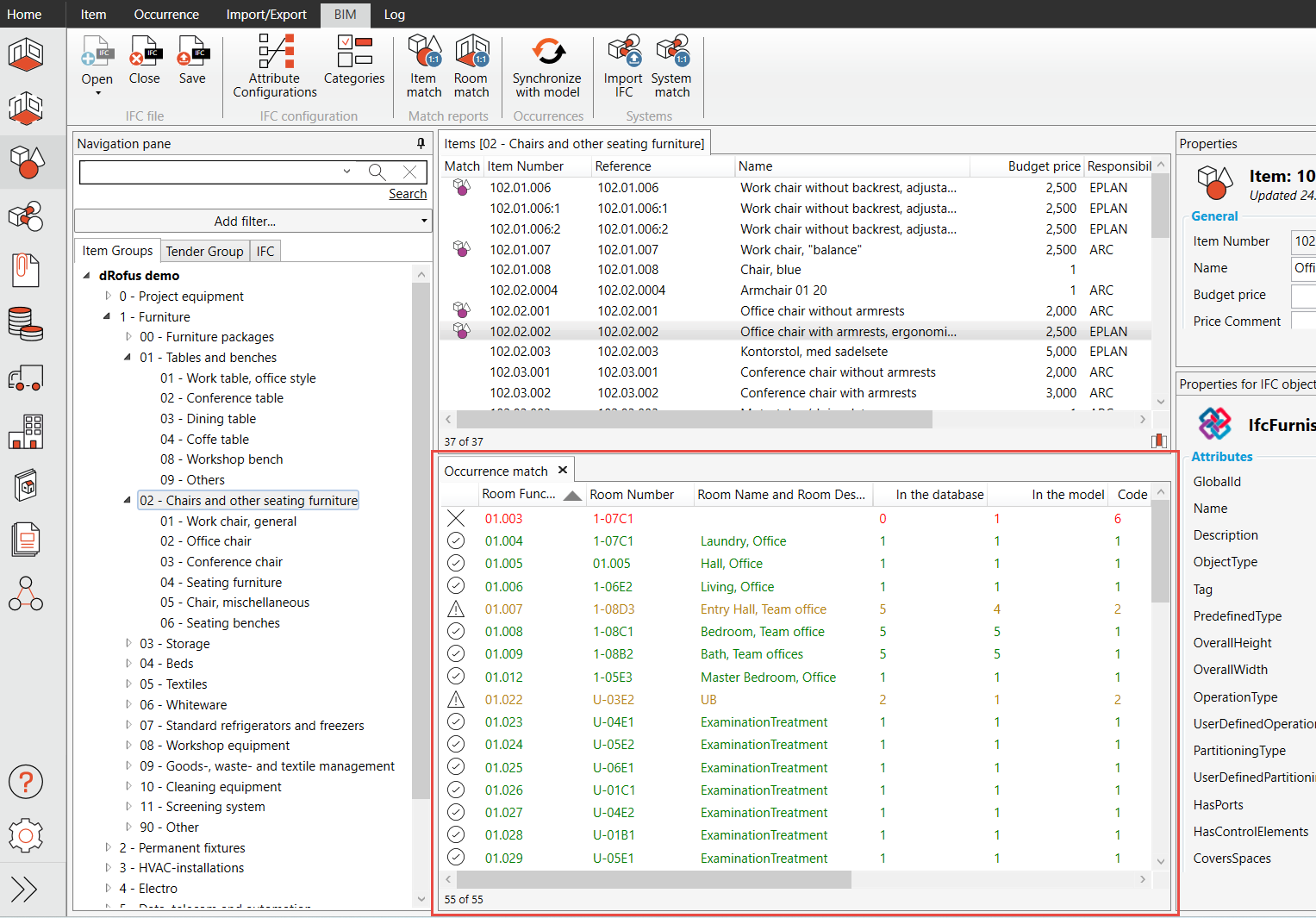

The Occurrences match panel can then be placed in an optional location. The example below is placed beneath the list of items.


In this list, you can see two columns: (Quantity) in the database and (Quantity) in the model. If the quantities match, the row will be highlighted in green. If the quantities do not match, the row will be highlighted in red. If you want to validate several rooms, you can select multiple(Quantity) In the database and (Quantity) In the model. If the quantities match, the row will be highlighted in green. If the quantity do not match, the row will be highlighted in red. If you want to validate several rooms you can multiple select more items in the list of Items, and the list in Occurrences match will automatically update.

Icons and markup

Icon

Description


Occurrence properly matched with IFC object. The row is colored green.


The occurrence matched, but the quantity didn’t match. The row is colored yellow.


The occurrence is not matched. It either exists only in dRofus or only in the IFC model. The row is colored in red.
