Area List Panel

The Areas panel provides a summary of areas relevant to the selection within the Function Structure of the Room Module.

Display the Areas Panel in the Room Module:

1. select the Areas icon

 from the icons displayed on the right side of the Room Module ).

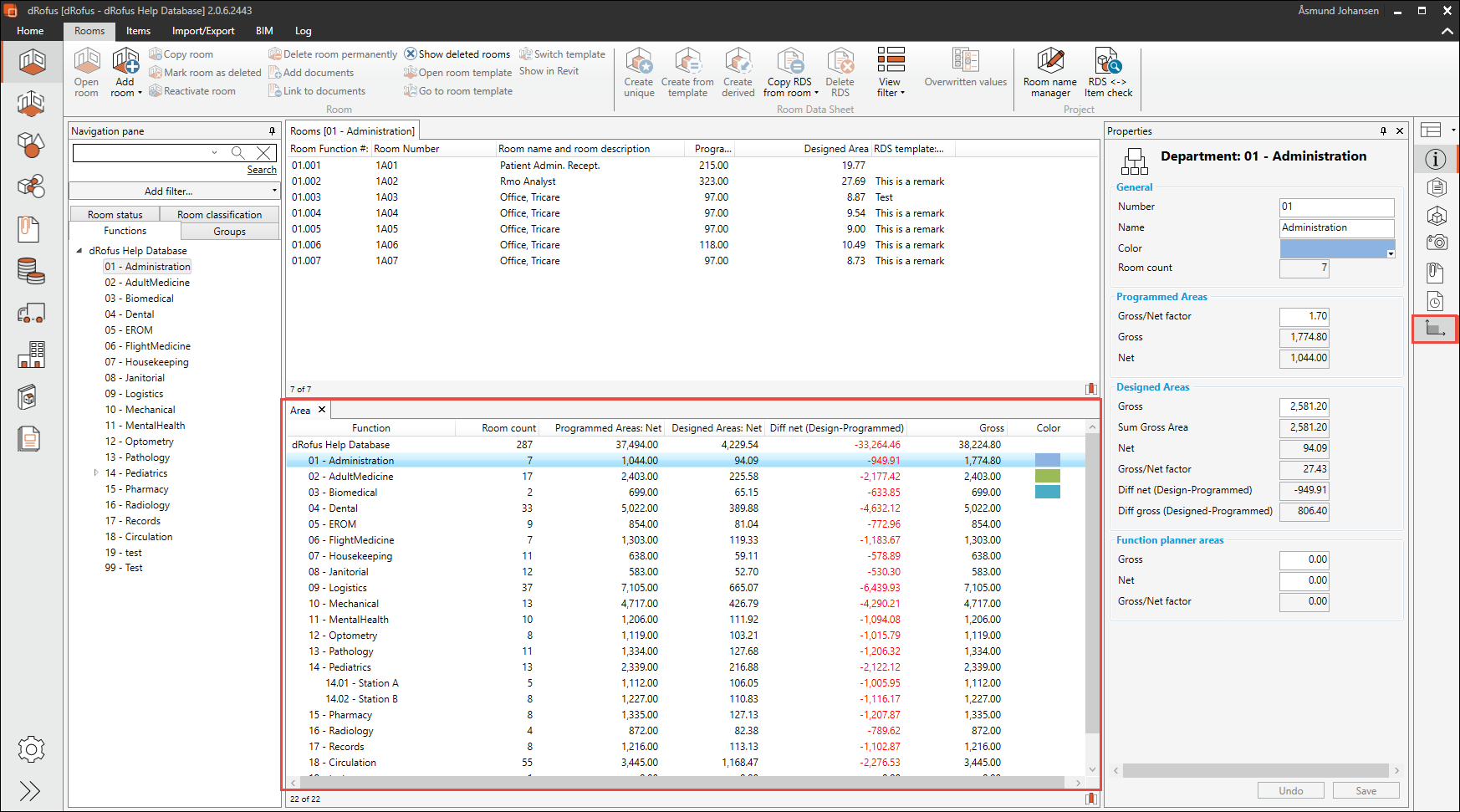

Above is an example from the Room Module with the Areas panel visible below the Rooms panel. The Area Panel displays:

  • A summarized overview of all Functional Areas

  • Totals of programmed areas

  • Designed areas

  • Variance between programmed areas and designed areas

When an IFC is connected to the datebase different color can be assign to the different Functions/Sub-Functions.
