Copy and Move Rooms

Use Copy to create additional rooms, or Move to relocate existing rooms to another room function or sub-function.

You can:

  • Copy rooms within the current project.

  • Copy rooms to another project in the same database.

  • Copy or move rooms between room functions using drag and drop.

Before you start

  • Open the source project in dRofus Desktop.

  • Find the rooms you want to copy or move in the Rooms module.

  • If you are copying to another project, make sure it is in the same database and that you have access to it.

Copy rooms using the ribbon or right-click menu

Use this method to choose a destination and specify the number of copies.

  1. In the Rooms module, select one or more rooms.

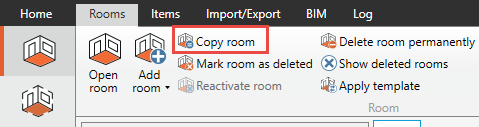

  2. Select Copy Room from the ribbon or right-click menu.

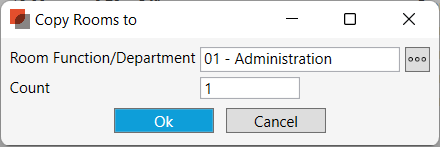

  3. Open the room-location selector, labelled Room Function/Department….

  4. Choose the destination:

    • Within the current project: select the destination room function or sub-function.

    • In another project: find the destination project, expand its room function structure, and select the destination room function or sub-function.

  5. Set the number of copies.

  6. Confirm the copy operation.

  7. Check the copied rooms in the destination. If you copied to another project, open that project to review them.

Expected result

Copies of the selected rooms appear under the destination room function or sub-function.

Room Data and item lists

When copying rooms within a project, the copy includes the Room Data and item lists. Items in the copied item lists are treated as separate occurrences.

Copying rooms does not merge their item lists with those of existing rooms. To combine item lists from two rooms, see Merge Items in Room.

Room serial numbers when copying to another project

  • When the number of copies is set to 1, dRofus attempts to preserve the room serial numbers.

  • When the number of copies is greater than 1, dRofus assigns new room serial numbers.

Check the room serial numbers after copying. Preservation is not guaranteed, even when the number of copies is set to 1.

Copy rooms using drag and drop

Use drag and drop to copy rooms between room functions or sub-functions within the current project.

  1. Select one or more rooms in the room list.

  2. Drag the selected rooms to the destination room function or sub-function in the navigation pane.

  3. Select Copy.

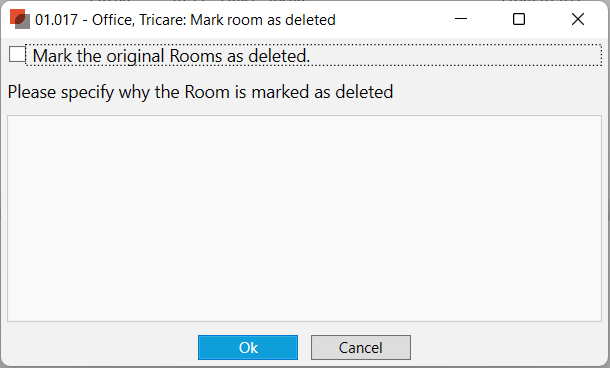

  4. In the copy dialog, leave the option to mark the original rooms as deleted unselected if you want to keep them active.

  5. Confirm the copy operation.

Expected result

Copies appear in the destination room function or sub-function. The original rooms remain active in their original location if you left the deletion option unselected.

Important: Selecting the deletion option marks the original rooms as deleted. Leave it unselected when you want active rooms in both locations.

Move rooms using drag and drop

Use Move when you want to relocate rooms rather than create copies.

  1. Select one or more rooms in the room list.

  2. Drag the selected rooms to the destination room function or sub-function in the navigation pane.

  3. Select Move.

Expected result

The rooms are relocated to the destination room function or sub-function. No copies remain in the original location.

The Room ID remains unchanged. The room function number updates to reflect the destination room function.

Notes and common mistakes

  • Copy and Move have different results. Copy creates additional rooms; Move relocates the existing rooms.

  • Check the destination before confirming. For cross-project copies, check both the project and the room function.

  • Check the deletion option when copying with drag and drop. Leave it unselected to keep the original rooms active.

  • Room ID, room serial number, and room function number are different identifiers. Check the relevant identifier when reviewing copied or moved rooms.

  • Copying selected rooms is different from copying a room function. To copy a room function rather than selected rooms, use the room-function copy commands.
