Visualize Systems with dRofus Web

Visualize Systems, System Components and Components using the dRofus WEB.

Open the Systems module:

  1. Select System Component or component by navigating or searching for the number.

  2. Window will be displayed showing properties. Properties will display connected:

    • Systems

    • Room

    • Room group

    • Status

    • Classification

    • Product

    • Items

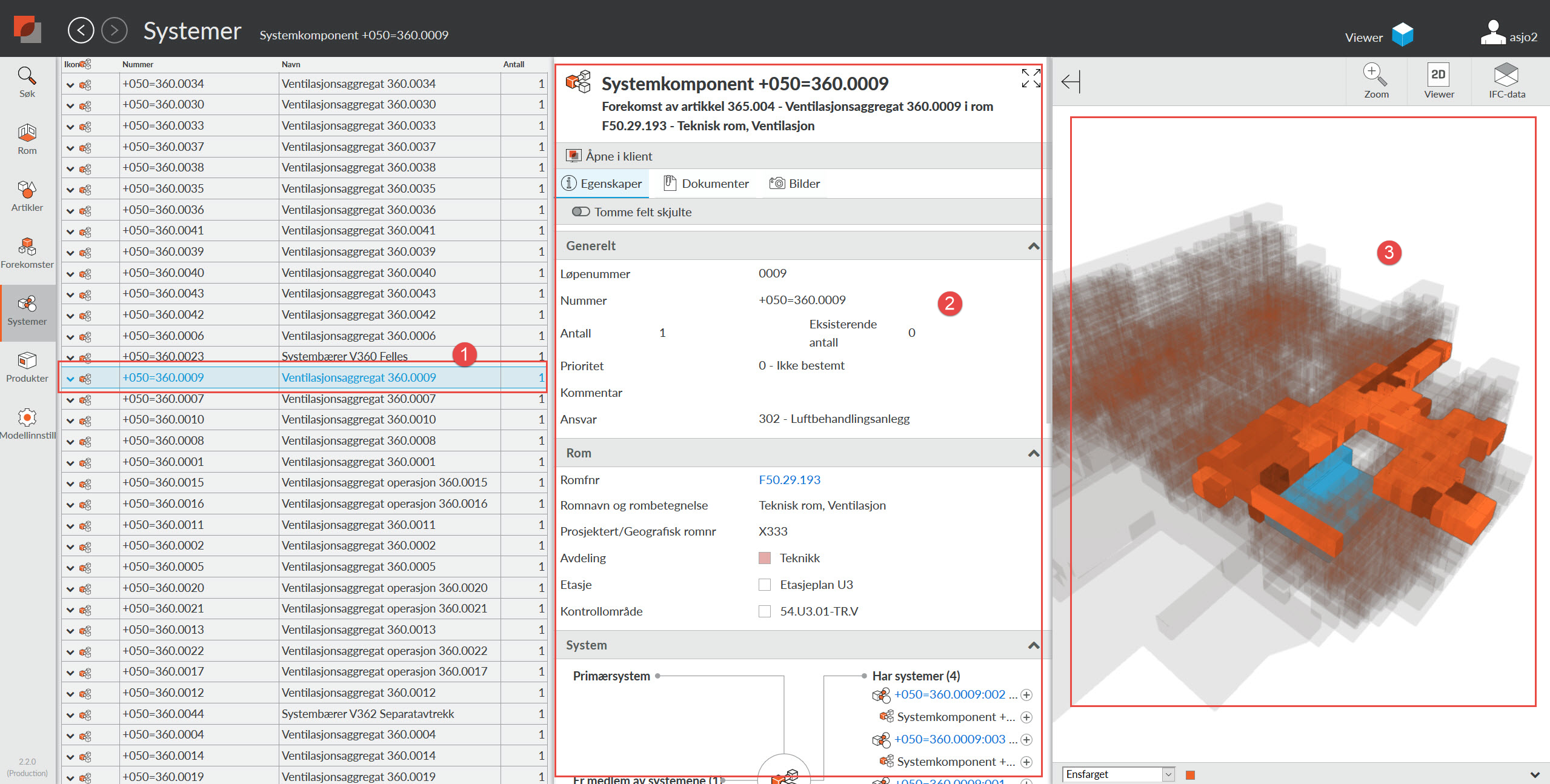

  3. Selecting the 3D view to display the system component and all components connected to the system. It the example above a System Component has been selected and is marked in blue. All components that are connected to the System Components through a System are marked in orange. This visulazation can be used to have a overveiw over all rooms that gets air, from this ventilation System Component.
