Import and synchronizing Systems

As part of Import and synchronize Occurrences, systems in the IFC file will also be imported and synchronized.

To import or synchronize systems you need write access to the IFC Systems module.

In order to import systems, all relevant Items needs to be created in dRofus first, as explained in IFC Items.

A system in the IFC will probably contain occurrences from different Items, so in order to make sure all Systems and Occurrences are imported it is an advantage to synchronize all occurrences of relevant Items.

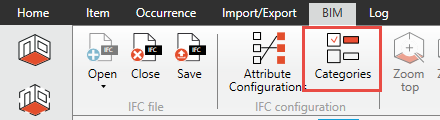

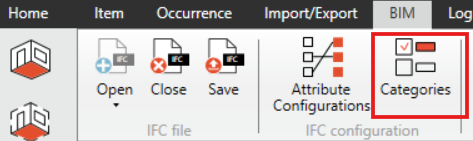

  1. Use the Category selector to determine which object you want dRofus to read from the IFC file

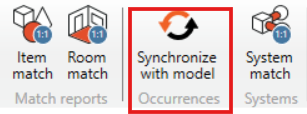

  2. Press Synchronize with model

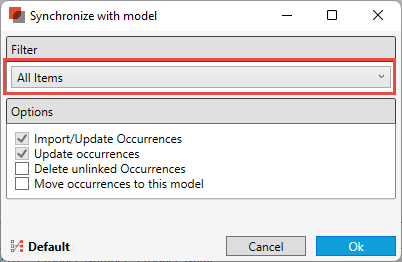

  3. Select All Items in the filter drop-down menu and select Ok

By following these steps dRofus will import/synchronize all occurrences in the IFC file and all the systems in the IFC file. dRofus will also set system component (system owner) for the systems. For more details on how dRofus determines which occurrence to set as system component please refer to Set System component
