Status

Use statuses to track progress through a workflow - for example, whether an item is being specified, is ready for review, or has been accepted.

Statuses can be assigned to items, occurrences, products, systems, documents, and rooms. The available workflows and status values depend on your project’s configuration.

Understanding statuses and status sets

A status set represents a workflow, such as Item specification process or Product workflow. Each set contains the status values that describe the steps in that workflow.

For example, an item specification process might use these values:

  • Created

  • In specification

  • Specification finished

  • Accepted

A project can have several status sets to track different processes. A set can apply to one or more object types, and an object can have a status in more than one set.

Item, occurrence, and product statuses are independent. Even when the same status set is available for several object types, each object has its own assigned status.

Your dRofus administrator configures the status sets and values available in the project.

View and change a status

In the Items module, status fields appear in the Status section of the Properties panel.

  1. Select the item, occurrence, or product you want to work with.

  2. Find the relevant field in the Status section.

  3. Select the appropriate status value.

The fields and values available depend on your project’s configuration.

Sequential workflows

Some status sets are sequential: users can move an object forward through the workflow, but not back to an earlier status.

For example, after an object moves from In specification to Specification finished, a user cannot return it to In specification.

If an object needs to return to an earlier status, contact your administrator. Administrators can assign earlier statuses in a sequential workflow.

Find objects by status

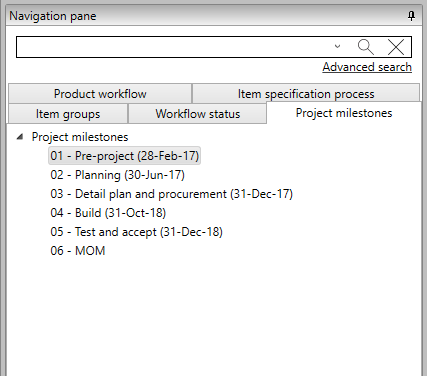

Use the status tabs in the navigation panel to find objects at a particular stage of a workflow.

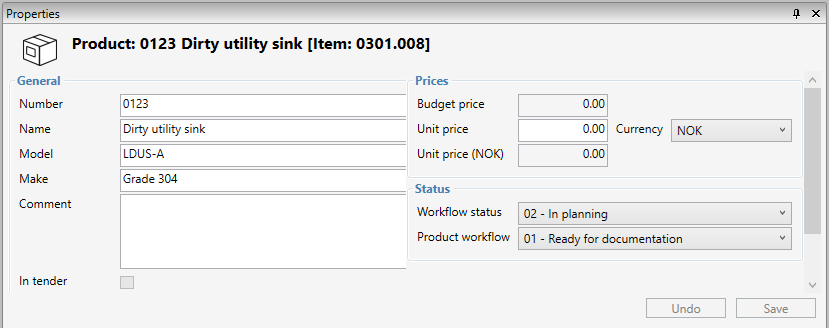

For example, to find products with the status 01 – Ready for documentation:

  1. Select the Product workflow tab in the navigation panel.

  2. Select 01 – Ready for documentation.

  3. Make sure the Products panel is open to see the matching products.

The tab names and status values depend on your project’s configuration.

Track milestones and due dates

A status set can include a due date. These sets can be used to track project milestones and find objects approaching a deadline.

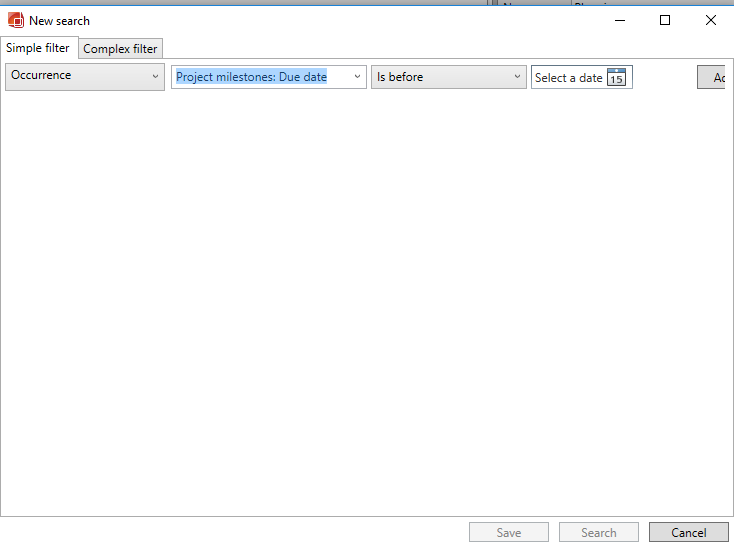

For example, you can search for occurrences with a milestone due before a specified date.

Administrators enable this feature using the Has due date option in the status set configuration.

Use statuses in reports

In Item and Occurrence reports, you can use statuses to:

  • Filter which objects are included.

  • Display an object’s status as an additional report field.

This allows you to report on specific workflow stages, such as items awaiting verification or occurrences that have reached a milestone.

Status colors

Status colors help you recognize workflow stages at a glance. For example, a project might use different colors for In specification, Ready for review, and Accepted.

Colors are configured for individual status values and appear in supported dRofus views. Statuses without a custom color use the default neutral theme color.

Always use the status name to identify the workflow stage. Color is a visual aid, not a replacement for the name.

Lock room and occurrence numbers using statuses

Status-based locking protects room and occurrence numbers from unintended changes. When a room or occurrence is assigned a status configured to lock changes, dRofus prevents users from changing its number or deleting it.

Use this feature when numbers must remain stable after a particular workflow stage - for example, after approval or registration in an external system.

What does a locking status protect?

Entity

Protected number

Additional protection

Occurrence

Classification number

The occurrence cannot be deleted.

Room

Room function number

The room cannot be deleted.

The protection remains active while the room or occurrence has a locking status. To change the protected number or delete the object, first change its status to one that does not lock changes.

A locking status protects numbering and prevents deletion. It should not be treated as a general read-only setting for all room or occurrence data.

Before you begin

  • An administrator must configure the status set and identify which status values lock changes.

  • The status set must apply to rooms, occurrences, or both, depending on the intended workflow.

  • Users must have the necessary permissions to assign or change statuses.

Configure a locking status

Administrator rights are required.

Configuration has two parts: enable locking for the status set, then select the status values that should lock rooms or occurrences.

1. Enable locking for the status set

  1. Open Settings under Project and database administrations.

  2. Select Project, then Status.

  3. Create a status set or edit an existing one.

  4. Ensure the status set applies to the relevant object types: rooms, occurrences, or both.

  5. Enable Is Locking.

  6. Confirm the changes.

2. Choose which status values lock changes

  1. Open the relevant status tab in the navigation panel.

  2. Select an existing status value, or create a new one.

  3. In the status properties, enable Lock for each status value that should protect numbering and prevent deletion.

  4. Save the changes.

For example, a project could configure the following workflow:

Status

Lock enabled

Intended use

Draft

No

Numbering can still be revised.

Under review

No

Numbering is being checked.

Approved

Yes

Numbering must remain unchanged, and deletion is prevented.

These status names are examples. Use names that match your project’s workflow.

Lock a room or occurrence

  1. Select the room or occurrence.

  2. In the Properties panel, locate the relevant field under Status.

  3. Assign a status configured to lock changes.

  4. Save the change.

The room or occurrence is now protected against changes to its number and against deletion.

Unlock a room or occurrence

  1. Select the locked room or occurrence.

  2. Change its status to one that does not lock changes.

  3. Save the change.

  4. Make the required numbering change or delete the object, as appropriate.

Removing the status-based lock does not grant additional permissions. Your normal editing and deletion permissions still apply.

Sequential status sets: If unlocking requires moving back to an earlier status, an administrator must make that status change. Standard users cannot move backwards in a sequential status set.

Why am I seeing a locked-object message?

If you try to change a protected number or delete a locked room or occurrence, dRofus displays a message explaining that its status locks the operation.

To continue:

  1. Check the room’s or occurrence’s current status.

  2. If the change is appropriate, assign a status that allows editing.

  3. Save the status change, then retry the operation.

If you cannot select a suitable status, contact your project administrator.

Administrator setup

Administrator rights are required to configure status sets, status values, and colours.

Setup consists of two parts:

  1. Create a status set to define the workflow and where it is available.

  2. Add status values to define the steps in that workflow.

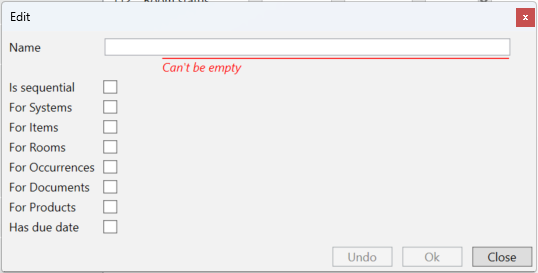

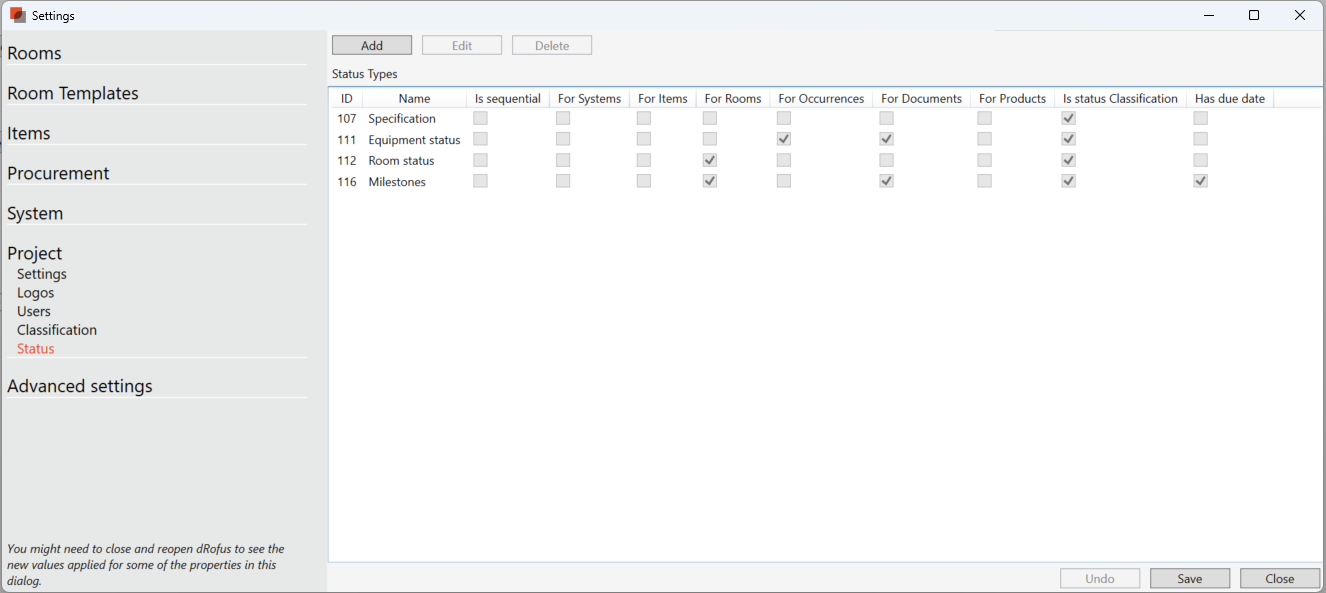

Create a status set

  1. Open Settings under Project and database administrations.

  2. Select Project, then Status.

  3. Select Add.

  4. Configure the status set using the options below.

  5. Select OK.

Setting

Description

Name

The workflow name, such as Item specification process or Product workflow.

Is sequential

Restricts users to moving forward through the workflow. Only administrators can assign an earlier status.

For systems / For items / For occurrences / For Documents / For products / For rooms

Defines which object types can use the status set. You can select more than one type.

Has due date

Enables a due-date field for milestone tracking.

Selecting both For items and For occurrences makes the set available for both types. It does not link their assigned statuses: items and occurrences retain independent status values.

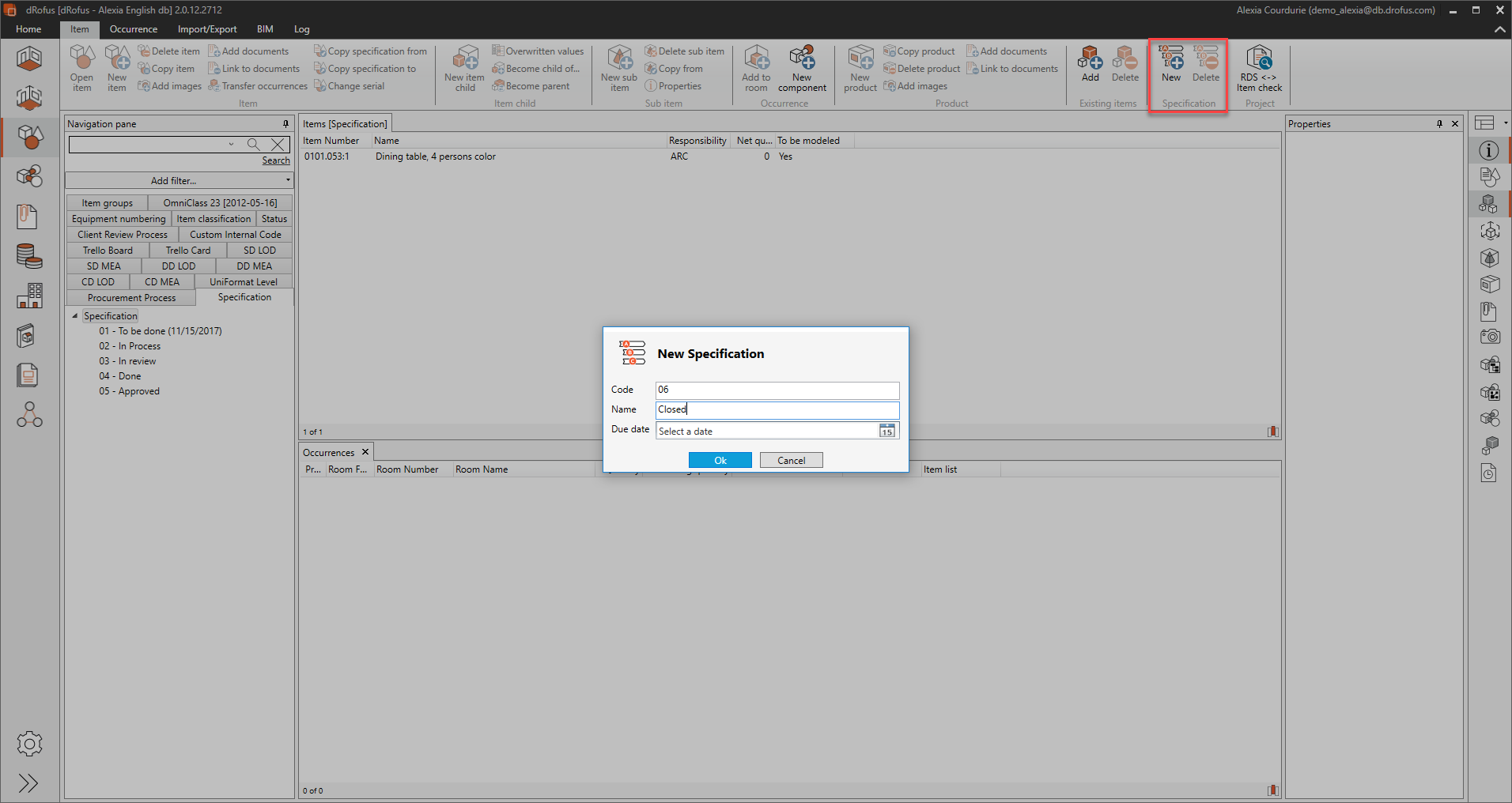

Add status values

After creating a status set, add the values that represent its workflow steps.

  1. Open the Items navigation panel.

  2. Select the relevant status tab.

  3. Select New in the ribbon.

  4. Enter the properties for the new status and confirm the entry.

For example, to add a final step to Item specification process, create a status named 06 – Closed.

Once added, the status is available for use in the database.

Configure a sequential workflow

Use Is sequential in the status set settings to control whether users can return objects to earlier workflow steps.

  • Enabled: Users can move objects forward only. Administrators can move them back.

  • Disabled: The forward-only restriction does not apply.

An administrator can change this setting for an existing status set.

Enable milestone due dates

Enable Has due date in the status set settings to make a due-date field available.

Use this option for workflows where users need to track deadlines or find objects due before a specified date.

Set a status colour

Colours are assigned to individual status values, not to the status set as a whole.

  1. Open Settings under Project and database administrations.

  2. Select Project, then Status.

  3. Select the relevant status value, or create a new one in the appropriate set.

  4. Locate the colour picker in the status properties.

  5. Select a colour and save the status.

The colour is used wherever that status’s colour indicator is supported. You do not need to update objects already assigned to the status.

Choose colours that are easy to distinguish, and use clear status names so the workflow remains understandable without colour.

Remove a status colour

  1. Open the status configuration.

  2. Select the relevant status value.

  3. Clear the selected colour or choose the default/no-colour option.

  4. Save the status.

The indicator returns to the default neutral theme colour. Removing a colour does not delete the status or change the status assigned to any object.
