dRofus Help & Learning

Create and edit Room Data Status

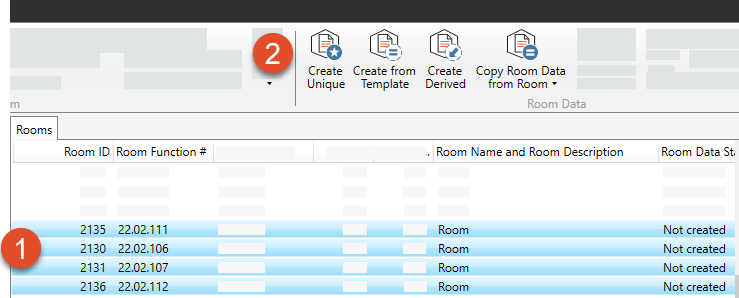

From the Ribbon Menu:

  1. Select one or more Room(s).

  2. Select status within the ribbon menu.

Ensure that the Rooms selected have the same Room Data status. For instance, they are all either "From" template or "Derived From" room template. If Rooms with different Room Data statuses are selected, it will not be possible to select status.

When selecting “Create from Template” read next step: Assign Room Data from Room Template to Rooms

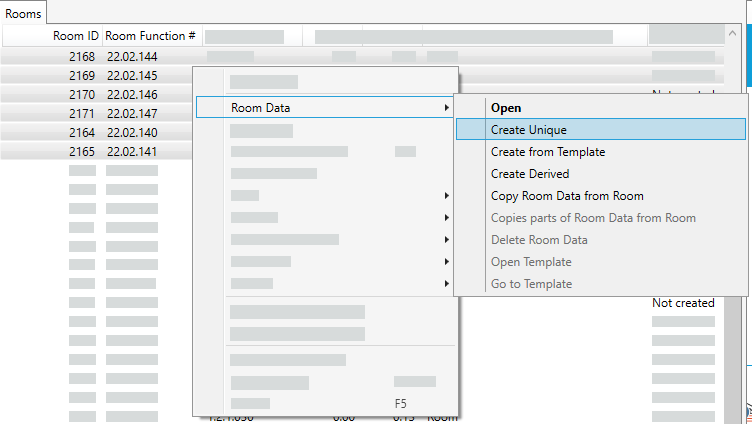

Right-click menu:

  1. Select one or More Rooms

  2. Right-click on the selected Room(s)

  3. Select “Room data”

  4. Select Status




When selecting “Create from Template” read next step: Assign Room Data from Room Template to Rooms

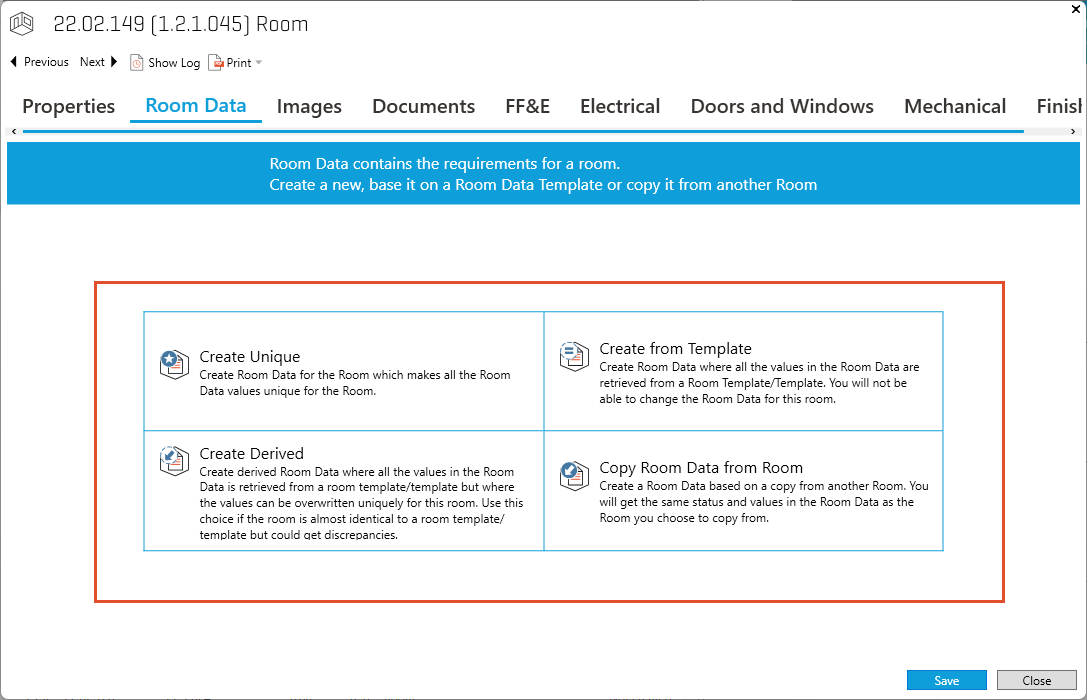

Select Status from the Room Data window:

Only available for rooms without Room Data status

  1. Double click on a Room to open window

  2. Select “Room Data”

  3. Select Status


When selecting “Create from Template” read next step: Assign Room Data from Room Template to Rooms

Change Status from the Room Data window:

  1. Double click on the room

  2. Select “Room Data”

  3. Select “Room Data Status”

  4. Select new status

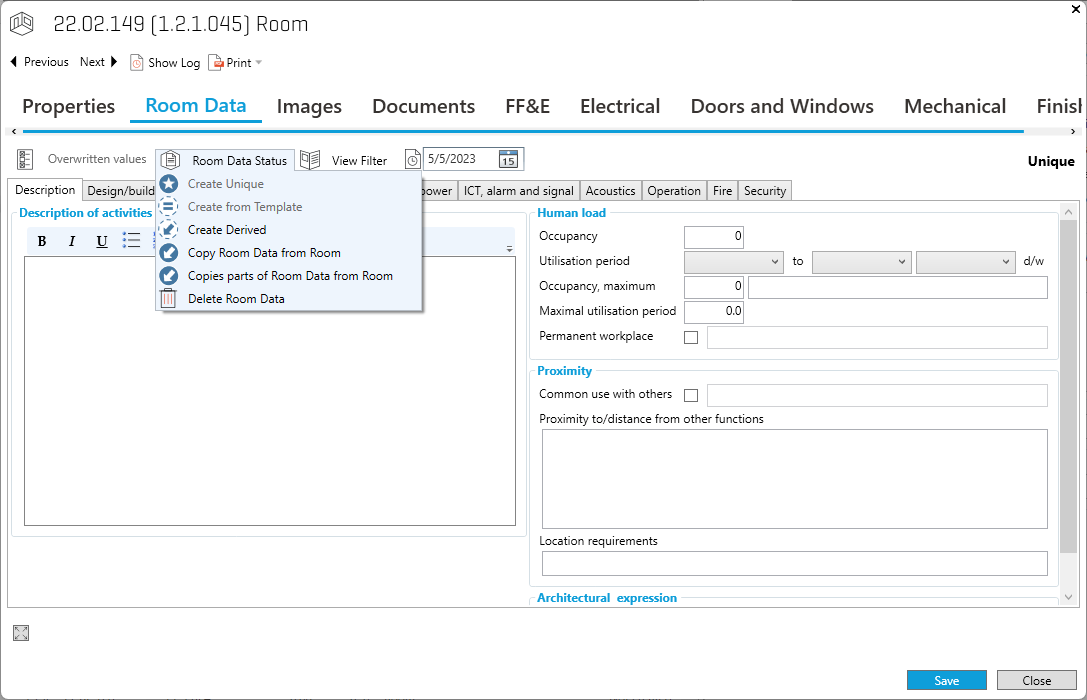

Example showing a room data with status “unique” therefor it is not possible to select “Create Unique”

When selecting “Create from Template” read next step: Assign Room Data from Room Template to Rooms
