Rooms with Room Data derived from Room Data Template PDF Report

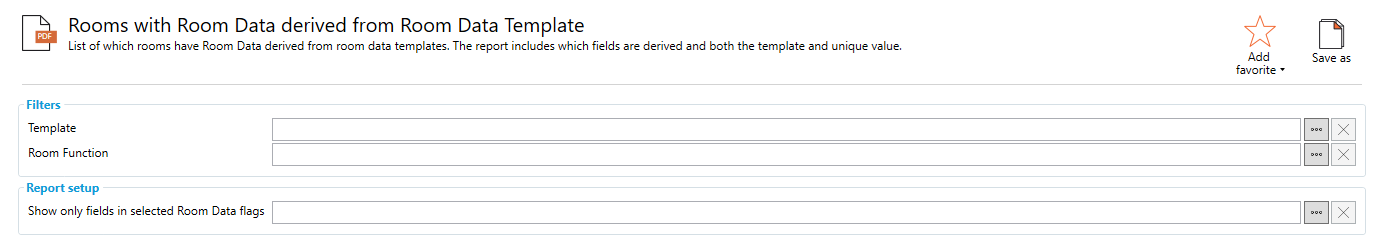

This report list rooms with Room Data derived from room data templates. The report includes which fields are derived and both the template and unique value.


Filters

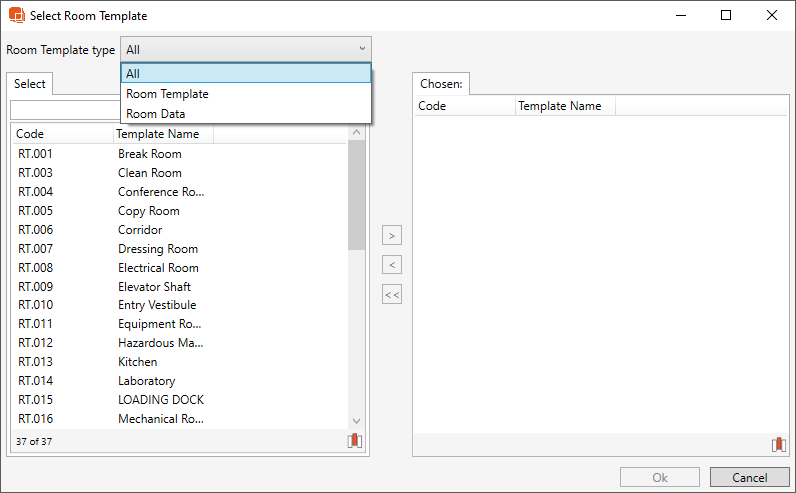

Template: Filters report data to show all Templates, Room Templates, or Room Data Templates.

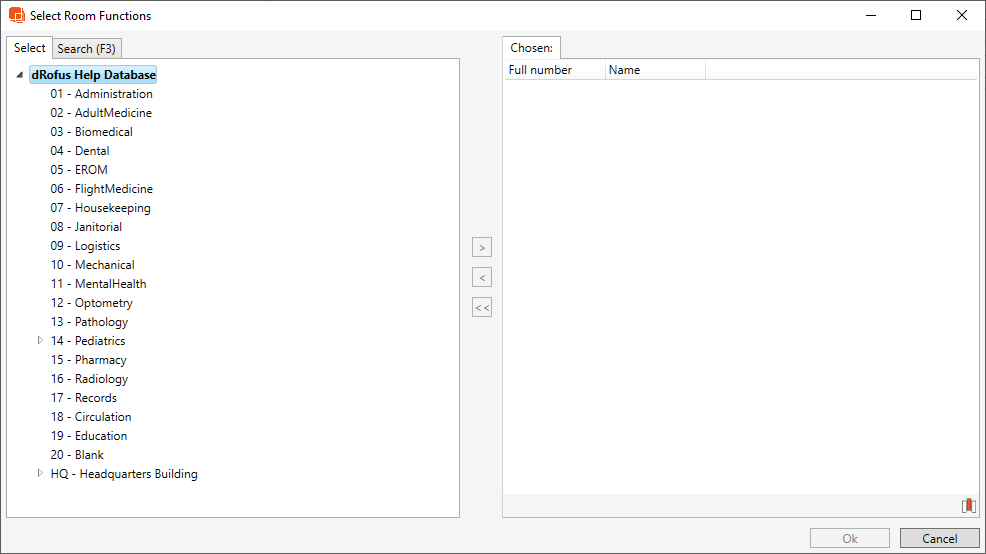

Room Function: Filters report data by Room Function.


Report Setup

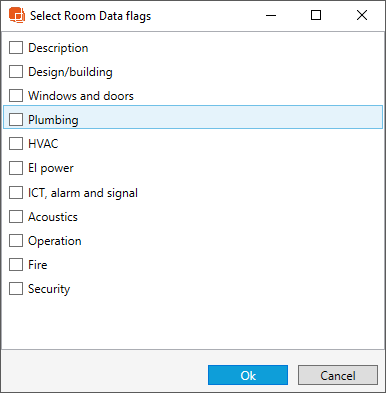

Show selected Room Data Tab fields only: When chosen, the report will only show the derived data associated to the selected Room Data Flags.


Report Output

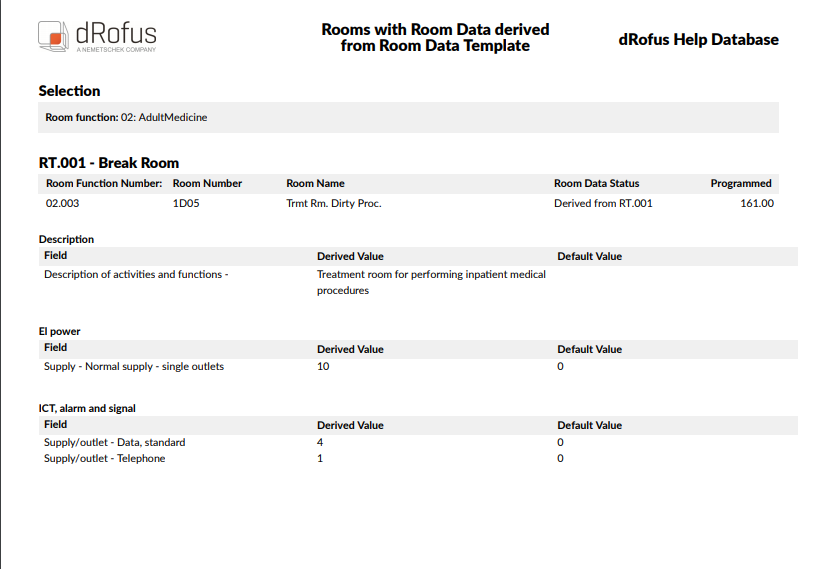

The output of the Rooms with Room Data Derived from Room Data Template report below shows the Room Function selection- 02: AdultMedicine, and the selected Template- RT.001

Rooms with Room Data derived from Room Data Template output.png
