Introduction to Revit Attribute Configurations

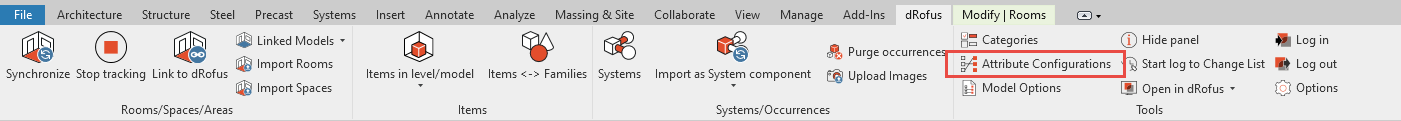

Revit attributes can be linked with attributes in dRofus. The linking are done in the Attribute Configuration

In the Attribute Configuration, you will need to set:

  • One key attribute that is used to link a Revit object with a dRofus object. Read more Key attribute

  • Determine which other parameters are linked together and if the Revit parameters send data to the linked dRofus parameter or if the dRofus parameter sends data to the linked Revit parameter.

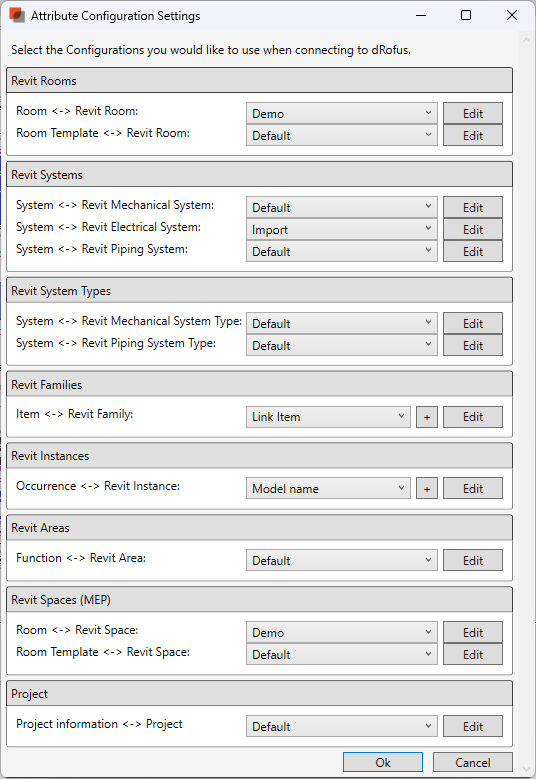

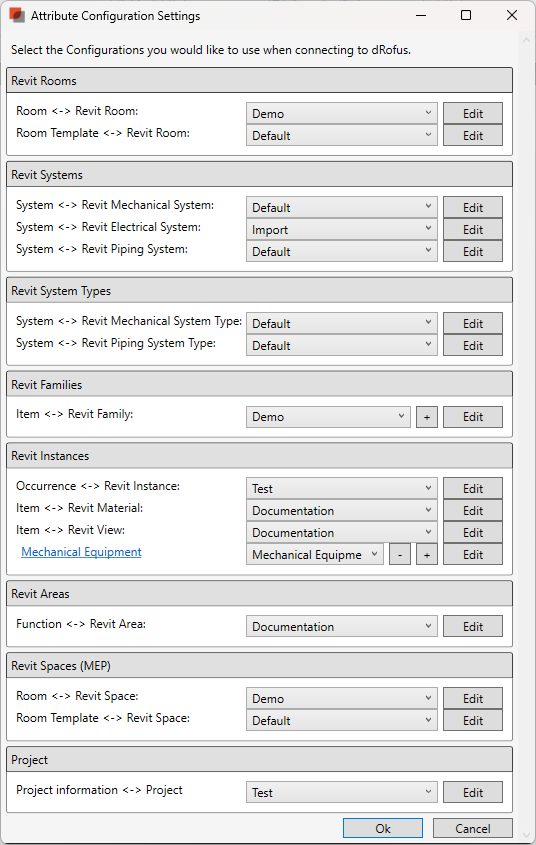

For Admin Users, the Revit Attribute Configuration Settings can be accessed and edited. For Users without Admin rights, the settings can only be viewed.

Read more about the different configuration usage Attribute Configuration Settings interface

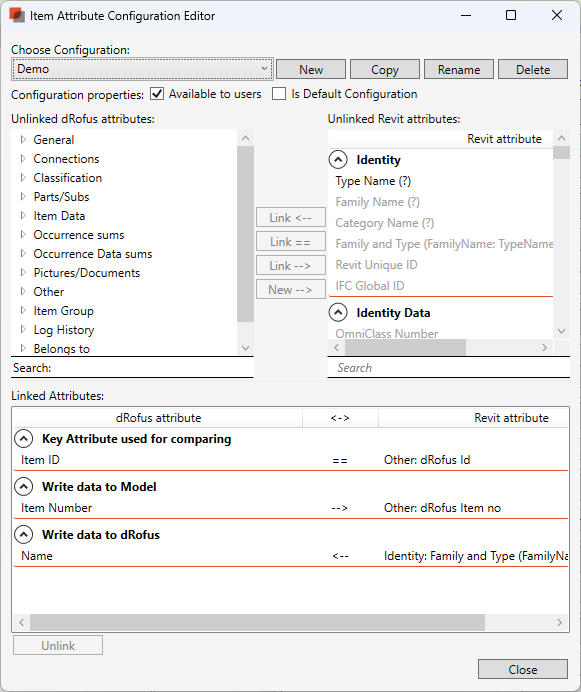

An example of an "Item Attribute Configuration" sheet can be seen below.

Read about editing: Attribute Configuration Editor Interface
