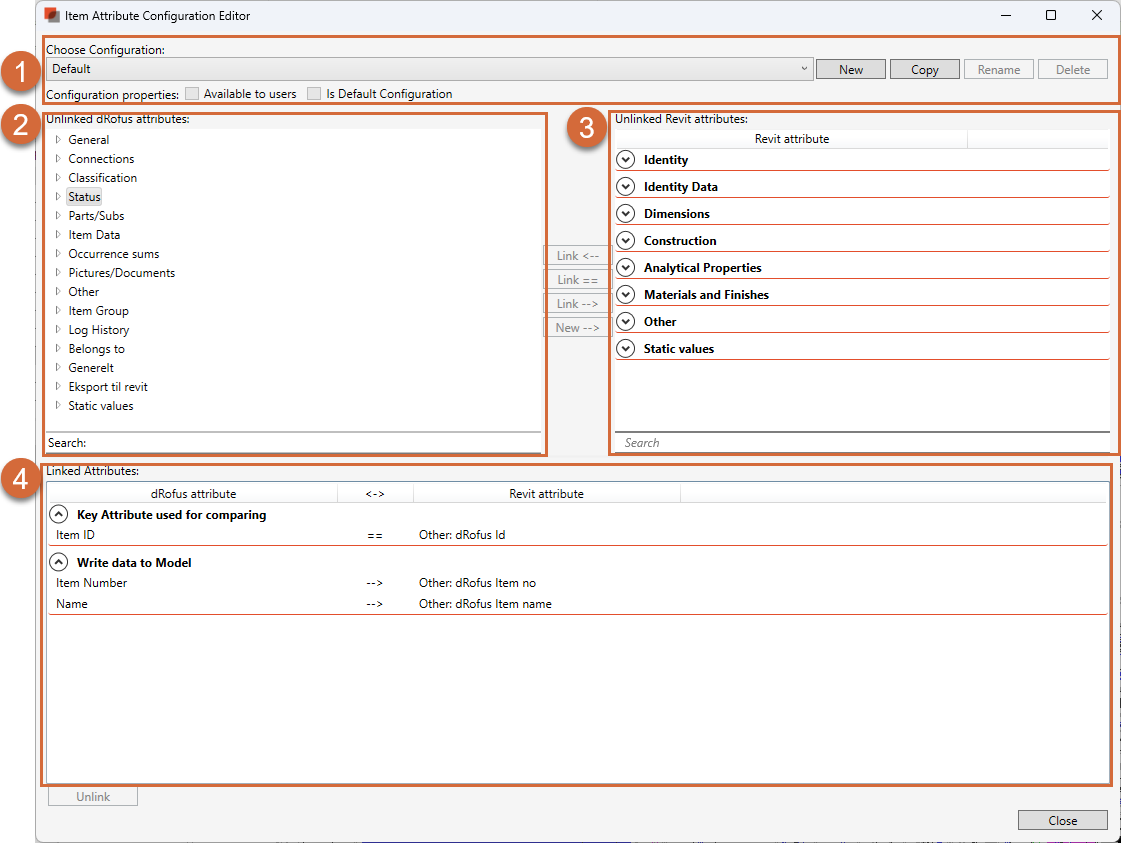

Attribute Configuration Editor Interface

1.Settings

Select Configuration

You can select the attribute configuration in the drop-down menu. Users without Admin rights can select Configurations that are set as “Available to users” in the drop-down menu

Options

You can select to create New, or Copy, Rename or Delete the selected configuration

Note that the configuration named "Default" cannot be edited, deleted or renamed, but you can create your own version of this by selecting it and clicking on "Copy".

Configuration properties

Available to users:

Users without Admin rights can select Configurations that are set as “Available to users” in the drop-down menu

Is default configuration:

Tick box if the selected configuration will be the default configuration for all Users.

In addition, Users can setup User-based default configurations for each configuration type within the Attribute Configuration Settings dialog, so that henceforth an alternate configuration will override as the default configuration for each configuration type for that particular User.

2. List of not linked dRofus Attribute

List of all dRofus Attribute that you can synchronize data to / from, which are not linked within the current configuration. dRofus attributes are categorized differently for each type of Configuration. Standard dRofus Attributes will be translated to English in Revit

3. List of not linked Revit Parameters

List of available Revit parameters that you can synchronize data to / from, which are not linked within the current configuration. If you are linking Revit parameters that is connected to specific categories, you would need to use sub configuration to see the parameter.

4. Linked Attributes

List of all the linked dRofus Attributes <-> Revit Parameters within the current configuration.
