Edit Room Settings

Use the Rooms settings to control how rooms are named, how changes are logged, and how room function numbers are built in your project.

Before you start

  • You need administrator access to the dRofus database.

  • Changes apply to all projects in the database (if not only one). They affect how dRofus generates room function numbers, so agree on your numbering standard before you change them.

Open the Rooms settings

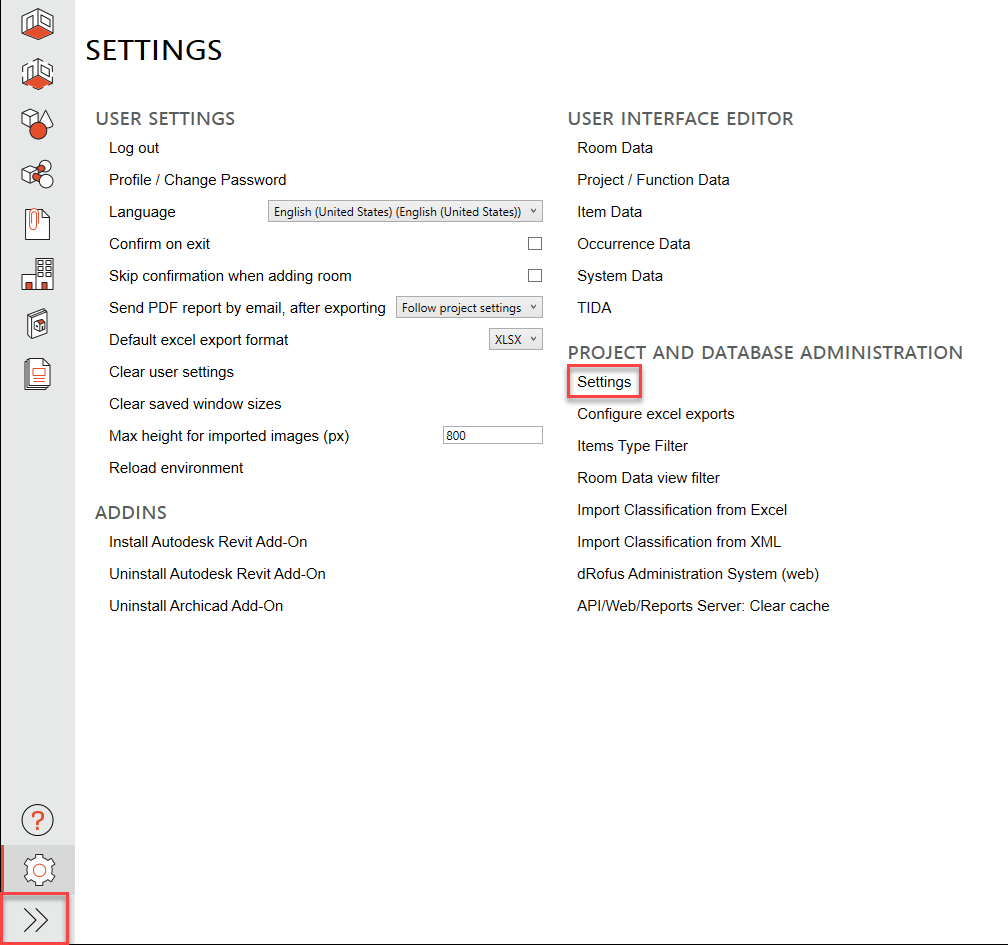

  1. Select Settings in the bottom-left corner of dRofus.

  2. Under Project and Database Administration, select Settings.

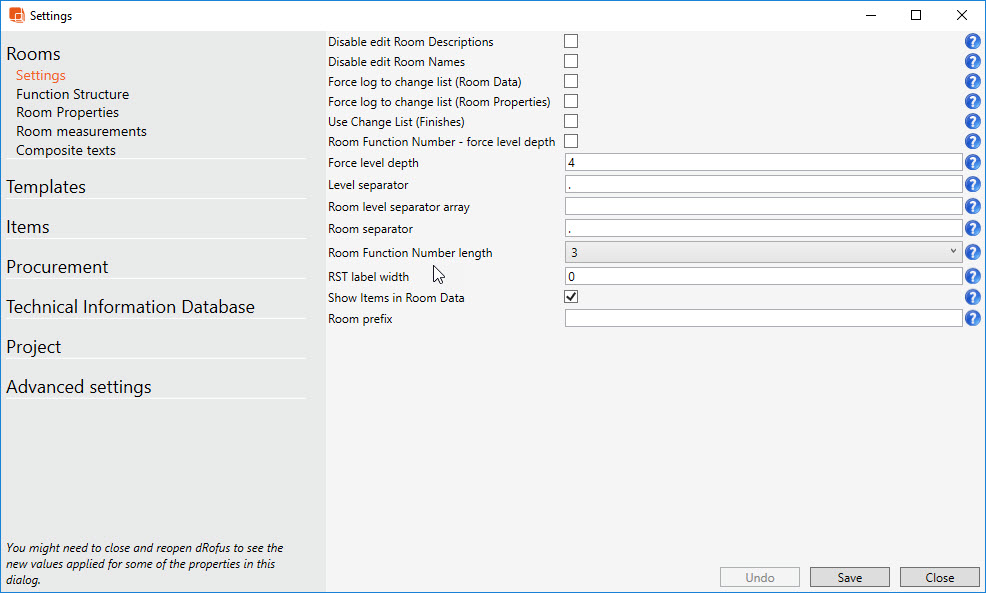

  3. Under Rooms, select Settings.


To see an explanation of any option in the dialog, hover over the question mark next to it.

Room names and descriptions

Setting

What it does

Disable edit Room Descriptions

Locks the Room Name Description field in the Room Properties panel. Users can change room descriptions only in the Room Name Manager.

Disable edit Room Names

Locks the Room Name field in the Room Properties panel. Users can change room names only in the Room Name Manager.

Change lists

Setting

What it does

Force log to change list (Room Data)

Users must select or create a change list when they change Room Data.

Force log to change list (Room Properties)

Users must select or create a change list when they change room properties.

Room function numbers

A room function number is made up of the function level codes, the separators between them, and the room serial number. The room serial number is always the last part.

Setting

What it does

Room Function Number - force level depth

When selected, rooms can only be added at the level depth set in Force level depth. dRofus shows an error if you try to add a room at a level with fewer levels.

Force level depth

How many function levels are included in the room function number.

Level separator

The character placed between level codes in the room function number.

Room level separator array

An advanced alternative to Level separator. Lets you set a different separator between each level code. Use ^ for no separator. For example, x^^. gives a room function number such as AxBC.D.

Room separator

The character placed between the level codes and the room serial number.

Room Function Number length

The number of characters in the room serial number. The default is 3, and the maximum is 8. If a level has more than 999 rooms, set the length to at least 4.

Verify that room serial number is all digits

When selected, room serial numbers can contain digits only. Clear this option to allow letters and digits, for example 0A2645.

Room prefix

A prefix added to all room function numbers in the project. Changing it changes every room function number.

Room Data

Setting

What it does

Show Occurrences in Room Data

Shows the room's occurrences in the Room Data panel.

Use letters and digits in room serial numbers

Some projects use room serial numbers that combine letters and digits, such as 0A2645. To allow this:

  1. Open the Rooms settings.

  2. In Room Function Number length, enter the number of characters your serial numbers need (up to 8). For 0A2645, enter 6.

  3. Clear Verify that room serial number is all digits.

  4. Select Save.

Result: You can now enter room serial numbers that contain both letters and digits, up to the length you set.

Note: Letters and digits in room serial numbers are supported from dRofus 2.19.

When changes take effect

Some changes only take effect after you close and reopen dRofus, or after all windows are refreshed. dRofus may close all open windows when you save.
