Logging to Change List from ArchiCAD

When working within the ArchiCAD Addon, there are times when you might want to log the changes made to a Change List in dRofus. (To read more about Change Lists, go to: Log with change list).

In addition (and only for links between dRofus Rooms <-> ArchiCAD Zones), when Changelist Logging is activated, the Room(s) automatically synchronize in real-time using the default Configuration for Rooms.

This means that the User will not be required to manually run the synchronization for Rooms when the Changelist Logging is activated.

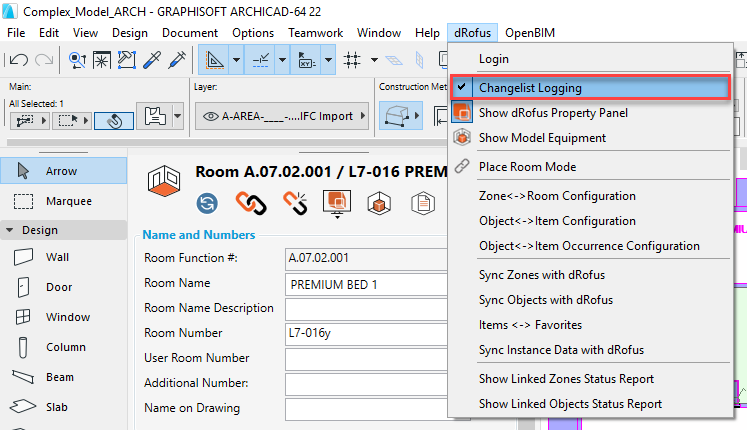

To activate this feature, after you log in to dRofus within the ArchiCAD Addon, select Changelist Logging (highlighted below):

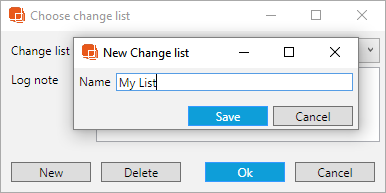

You can then either select "New" to create a new Change List or pick an existing one from the drop-down menu:

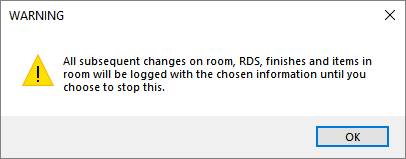

Select "Ok" to start tracking changes with the selected Change List. The following message will pop-up after which you can then select "OK" to confirm that you are aware that all subsequent changes will be logged against the selected Change List until you decide to stop logging changes:



To stop logging all changes against the Change list, select "Stop logging to change list" (highlighted below):


Force Change List

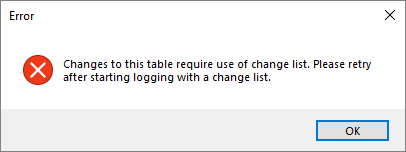

If the Project Administrator has enabled the "Force Change List" feature within the Administration Settings for the Project, Users will see the following warning message, in which case they are required to use the "Start logging to change list" functionality described above:
