Linked ArchiCAD Objects Status

 The Link Status dialog panel provides a detailed overview of dRofus Items, ArchiCAD Objects and their linked status

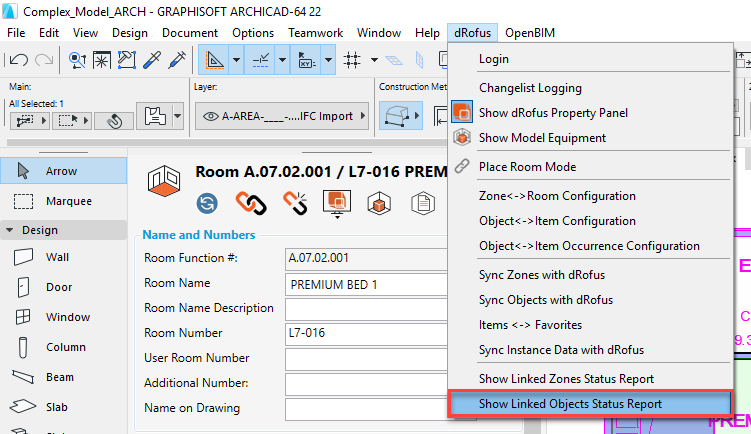

To access the panel go to Show Linked Objects Status Report within the dRofus Menu:

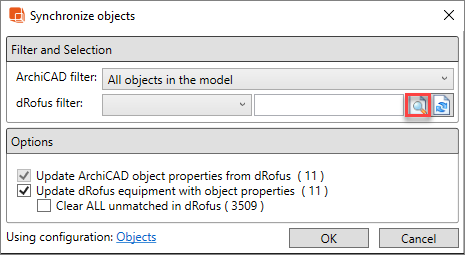

You can also access the Link Status dialog by clicking on the magnifying glass symbol

 within the Synchronize Zones dialog (see Synchronize ArchiCAD Zones):

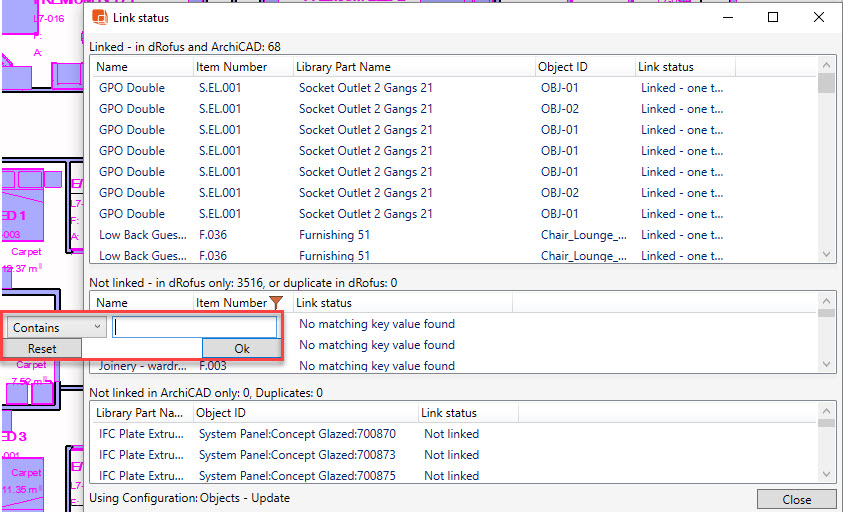

The Link Status dialog lists the link status of all ArchiCAD Objects and dRofus Items in the project:




The Link Status dialog is divided in to three lists:

  • Linked – in dRofus and ArchiCAD: x: Lists all the linked dRofus Items as well as the corresponding ArchiCAD Objects.
  • Not linked – in dRofus only: x,or duplicate in dRofus: x: Lists all the dRofus Items that are not linked with ArchiCAD Objects, either because there are no matching key values or there are identical key values in two or more dRofus Items.
  • Not linked in ArchiCAD only: x, Duplicates: x: Lists all the ArchiCAD Objects that are not linked with dRofus Itemseither because there are no matching key values or there are identical key values in two or more ArchiCAD Objects.

Within any of the above three lists, it is possible to right-click to Add/remove columns or Export to ExcelColumns can be filtered by selecting the filtering icon.
